Configure Excel Services in SharePoint 2013

Step 1:
Central Administration > System Settings > Manage services on server
Start "Excel Calculations Services"

Step 2:

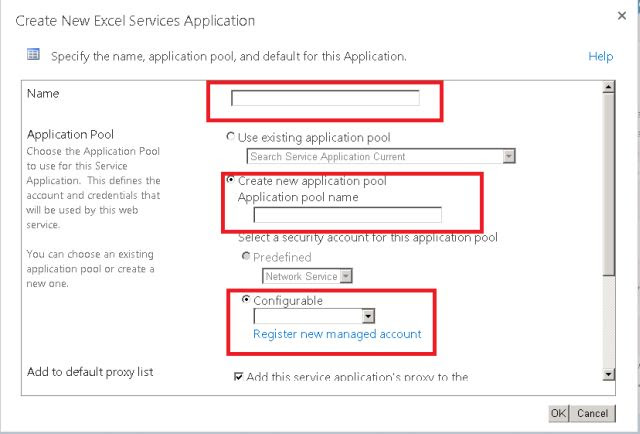

Central Administration > Application Management > Manage service applications and create  a new "Excel Service Application"
                            Figure 4.jpg
Figure 5.jpg

  • Click OK You are done with configuring Excel Services.

Step 3:

Central Administration > Application Management > Manage service applications > Excel Service Application (This will change based on how you named the service instance on the previous step) > Trusted File Locations

Fill the Address with a Document Library location. I have created a document library called "Excel Documents" in a site called "Team".

Central Administration > Application Management > Manage service applications > Excel Servcie Application > Trusted Data Connection Libraris
Make sure you have a "Data Connection Library" type library. Name of my data connection library is "Data Connections" which is created in a site called "Team".
Now you have successfully completed with Excel service configuration.

Step 4configure the next step based on the following link.

Sometime following error occurred  in the Excel service:

Error 1:Failed to create the target application because of the following error: Cannot finish this operation successfully. Please contact your administrator.AndAn error has occurred in the claim providers configured from this site collection
Configure the Alternate Accessing mapping  in Central administrator,  Intranet box add the http://ServerName:7777

Error 2: Cannot complete this action as the Secure Store Shared Service is not responding. Please contact your administrator.

Error 3: Before creating a new Secure Store Target Application, you must first generate a new key for this Secure Store Service Application from the ribbon.
IIS Reset

Error 4: We don't know what happened, but something went wrong.
Could you please try that again?
Error Id: 3f645d9c-149d-00e2-edf1-0cbe9f3cc62a, 20131205104839
IIS ->Application pool -> start the SharePoint web service root-->IIS Reset.

Error 5: We cannot locate a server to load the workbook Data Model.
IIS Reset.

Error 6: We're not able to contact the server. It might not be responding, or your internet connection may have been interrupted. Please try again
 Run the firefox.

Error 7: An error occurred while accessing application id ExcelServicesDataAccess from Secure Store Service. The following connections failed to refresh
Open SharePoint Central Administration
Open Application Management
Click Manage Service Applications
Click Secure Store Service
Click Set Credentials" button in enter username and password

Error 8:  Be careful. The query to get the data might be unsafe so you should only refresh the workbook if you trust its source.
Do you want to refresh the workbook?
In Central Administration, in Application Management, click Manage service applications.
Click Excel Services Application.
Click Trusted File Location.
Click http:// or the location you want to configure.
In External Data, clear the checkbox for Warn on Refresh.
Click OK.

Error 9: An error occurred while working on the Data Model in the workbook. Please try again.
We were unable to refresh one or more data connections in this workbook.
The following connections failed to refresh:
Start the SharePoint web service root Application pool in IIS and IIS Reset.

Error 10: "You can't open this location using this program. Please try a different location
Solution:  Launch the Server Manager, and click on Add Features
Add Desktop Feature
Enabling this will require you to restart the server .
